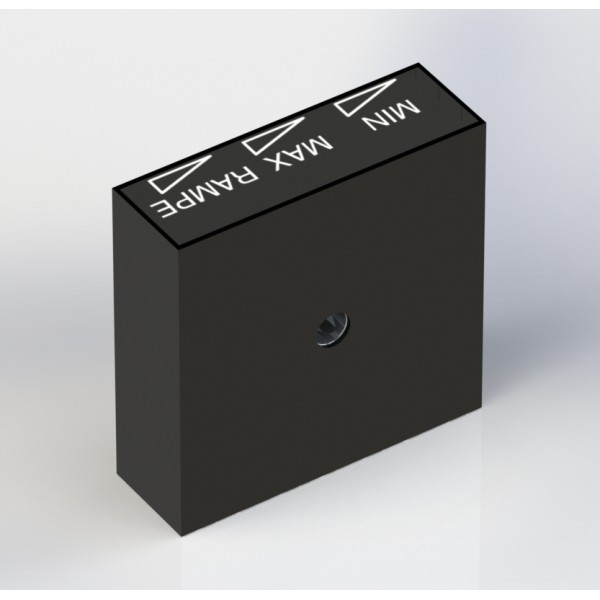

MODULE FOR PWM 1KHz PROPORTIONAL SOLENOID VALVE. SETUP: REMOTE POTENTIOMETER. STOP ON MINIMUM

WAAB1108

This module regulates the current drawn by the coil of the valve depending on the position of the remote potentiometer.

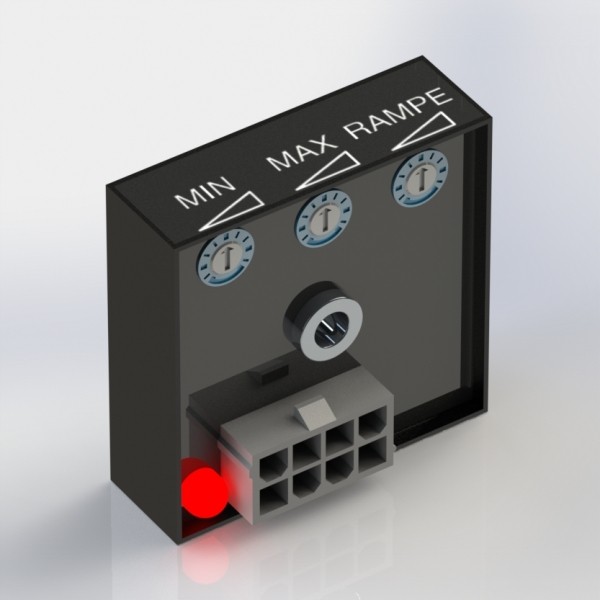

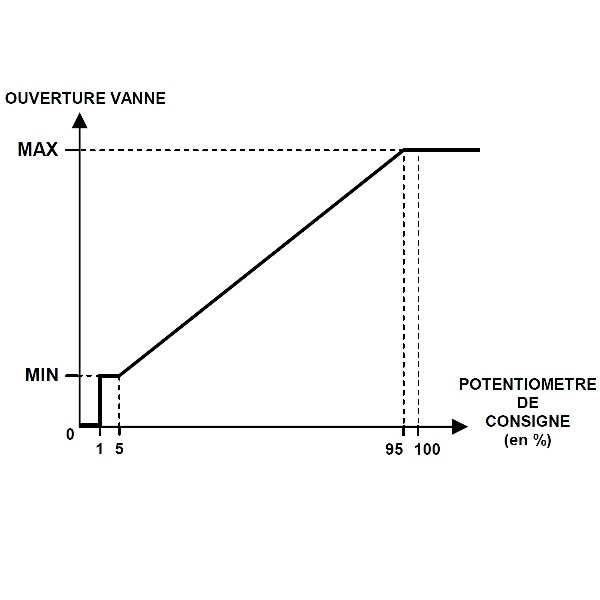

The opening of the proportional valve changes between a minimum threshold and a maximum threshold defined by two potentiometers integrated on the rear face.

See technical documentation (links below)

Applications :

  • controlling an hydraulic proportionnal valve 12VDC and 24VDC.
  • controlling speed of an hydraulic motor througt a proportional valve.

Have a question, a change request, send us an email to gv@ngv1.com

More details

Prices

1-4 5-9 10 +

94,14 €

85,51 €

81,30 €

More info

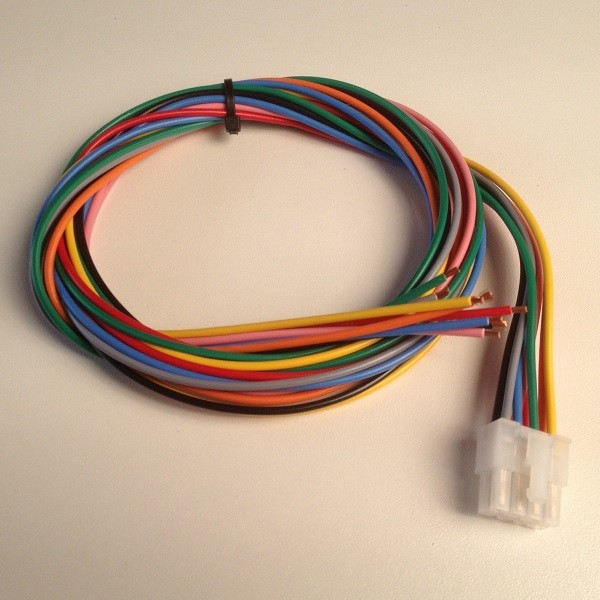

Accessories
